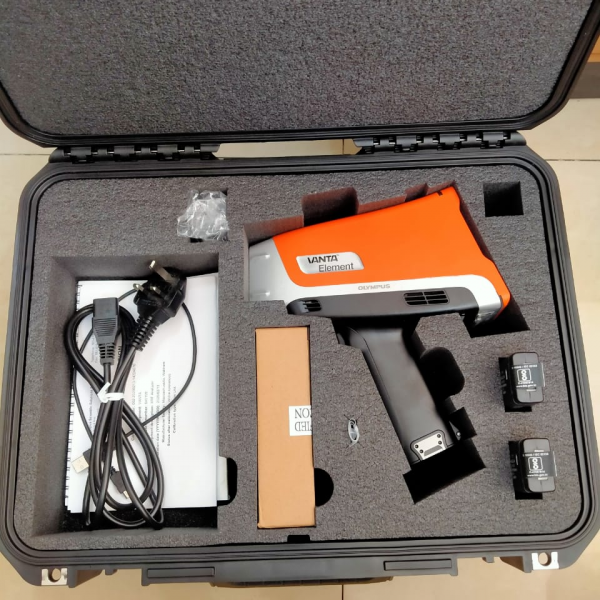

OLYMPUS VANTA XRF SERIES
Harga : Rp 0.00
Brand : OLYMPUS,Thermo Scientific Nittol XL,Bruker
Stok : In Stock
OLYMPUS VANTA XRF SERIES
The Vanta Handheld XRF Series: Rugged. Revolutionary. Productive.
The Vanta Analyzer is our most advanced handheld X-ray fluorescence (XRF) device and provides rapid, accurate element analysis and alloy identification to customers who demand laboratory-quality results in the field.
Vanta handheld XRF Analyzers are built to be tough. Their rugged and durable design makes them resistant to damage for greater uptime and a lower cost of ownership.
With intuitive navigation and configurable software, the Vanta series are easy to use with minimal training for high throughput and a fast return on investment. Featuring innovative and proprietary Axon technology, Vanta analyzers give you accurate results and help boost productivity no matter the environment or working conditions.
OLYMPUS VANTA XRF SERIES
- Exceptional durability under extreme conditions.
- Analytical superiority.
- Optional Wireless LAN and Bluetooth® for real-time data sharing. Cloud technology enabled.
- Intuitive user interface.
Click Here : VANTA XRF Analyzer Brochure
Click Here : Link E-Catalog LKPP LPSE PT. Mora Anugerah Berkat
| Specifications | Vanta Element Model | Vanta Element-S Model | |
| Dimensions (W × H × D) | 8.3 cm × 28.9 cm × 24.2 cm (3.25 in. × 11.4 in. × 9.5 in.) | ||
| Weight | 1.54 kg (3.39 lb) with battery, 1.32 kg (2.91 lb) without battery | ||
| Excitation | 2-watt X-ray tube with | 4-watt X-ray tube with | |
| Primary Beam | Fixed aluminum filter wheel | 4 position filter wheel | |
| Detector | Silicon PIN detector | Silicon drift detector (SDD) | |
| Power | Removable 14.4 V Li-Ion battery or 18 V | ||
| Display | 800 × 480 (WVGA) LCD with capacitive touch screen | ||
| Operating | Temperature : −10 °C to 45 °C (14 °F to 113 °F) at 100% duty cycle | ||
| Drop Test | Military Standard 810-G 4-foot (1.3 M) drop test | ||
| IP Rating and | IP54 : dust protected and protected against | ||
| Operating System | Linux® | ||
| Data Storage | microSD™ slot with removable 1 GB Industrial SD card included | ||
| USB | (1) USB 2.0 type mini-B port cable for connection to computer | ||
| Wireless LAN | Supports 802.11 b/g/n (2.4 GHz) via optional USB adaptor | ||
| Bluetooth | Supports Bluetooth® with an optional USB adaptor | ||
| Warranty | One-year warranty | ||
| Optional Accessories | Field Stand, Soil Foot, and Holster | ||
Rugged
Breakdowns cost time and money. Vanta analyzers are durable for increased uptime and a low cost of ownership. And with an included three-year warranty, you can be assured that we stand by the ruggedness of Vanta analyzers.
Built to thrive in the toughest working environments, Vanta analyzers are:
- Drop tested using U.S. Department of Defense methods (MIL-STD-810G), reducing the risk of damage and costly repairs when a device is dropped or jostled.
- IP55 rated dust and water resistant to protect against the hazards found in even the most challenging environments.*
- Withstands a temperature range of -10 °C to 50 °C (14 °F to 122 °F) at full duty cycle, so you waste less time waiting for your analyzer to cool.**
- The detector shutter on C and M series models helps prevent punctures so you can analyze rough surfaces with confidence.
* M Series analyzers are IP54 rated.
** With optional fan. Operates continuously at 33 °C without the fan.
Revolutionary
Vanta analyzers give you the same accurate result every time from your first test to your hundredth test.
The Vanta Series’ proprietary Axon™ technology uses ultra-low-noise electronics enabling higher X-ray counts per second for fast, accurate, and repeatable results.
Axon technology coupled with a new quad-core processor make Vanta analyzers remarkably responsive, pushing the limits of performance so you get the best results in the least amount of time. Axon technology provides remarkable test-to-test and instrument-to-instrument repeatability, so your first test is the same as your last test no matter what instrument you may use.
Productive
Vanta analyzers maximize user throughput and make data archiving easy. Application-specific software features improve user productivity for fast ROI.
- Intuitive user interface (UI) to quickly navigate the device’s settings and software functions.
- Customize which features and functions are displayed on the main screen.
- Data export is simple via a USB flash drive, Wireless LAN, or Bluetooth.
- Touch screen display that is clear, bright, and readable in any light.
- Ergonomic buttons and an industrial-grade, push-button joystick make it easy to navigate the UI with gloved hands.
- Embedded GPS to pair results with precise GPS coordinates for documentation and data mapping.
- Optional 5-megapixel panoramic camera; combine images with XRF data and GPS coordinates.
- Streamlined reporting and archiving for exceptional data traceability to the field.
- Cloud technology enabled.
OLYMPUS VANTA XRF SERIES
| Feature | Vanta Max | Vanta Core |
| Primary Role | Highest Analytical Capability | Standard Performance/Value |
| Detector Type | Large-Area SDD | SDD |
| Element Range | Widest (Including Light Elements) | Wide (Including Light Elements) |
| X-ray Tube Power | Up to 55 kV (Highest) | Up to 50 kV |
| IP Rating | IP54 | IP55 |
|
Click Here : XRF Analyzer Brochure Click Here : Link E-Catalog LKPP LPSE PT. Mora Anugerah Berkat | ||
| Feature | Vanta Element-S | Vanta Element |
| Primary Role | Affordable Light Element ID | Basic Alloy ID/Sorting |
| Detector Type | SDD | Silicon PIN |
| Element Range | Good (Includes Light Elements) | Limited (Heavy Elements Only) |
| X-ray Tube Power | 50 kV | 35 kV (Lowest) |
| IP Rating | IP54 | IP54 |
Click Here : VANTA XRF Analyzer Brochure
Click Here : Vanta XRF Analyzer Series Catalogue
Click Here : Thermo Scientific XRF XL5 Analyzer Catalogue
Click Here : XRF Analyzer X-Met Catalogue
PT. Mora Anugerah Berkat adalah perusahaan yang sudah berpengalaman dalam menyediakan / mensupply peralatan NDT (Non - Destructive Test) seperti OLYMPUS VANTA XRF SERIES , kami juga menyediakan berbagai brand/merk internasional dari USA, Eropa dan China, produk internasional yang kami supply / tawarkan seperti : OLYMPUS, Thermo Scientific, Hitach High-Tech (Oxford Instrument), Bruker, Sci App, Drawel, ESI Analyzer dan lain - lain ; Kami juga menyediakan Jasa Perbaikan (SERVICE), Jasa Perawatan (Maintenace) dan support untuk KALIBRASI / AKSESSORIES SPAREPART jangan ragu untuk menghubungi kami marketing dan sales kami siap membantu menjawab segala kebutuhan anda. :
